How To Set Zoom Extents In Autocad

August 30, 2021 Post a Comment

Select all in the drawing and then hold the shift key down while drawing a window selection around desired geometry. Specify corner of window enter a scale factor nX or nXP or AllCenterDynamicExtentsPreviousScaleWindow 5x AutoCAD automatically supplies a factor of5x to the first Zoom command prompt when you select the Zoom Out menu.

Changing And Editing Point Markers And Labels In Civil 3d Markers Civilization Labels

Ungroup everything in the drawing ie select all and then UNGROUP.

How to set zoom extents in autocad. The extents are also now centered left to right Use Zoom Extents if you get lost in a large drawing and want to see the big picture again. Pick two corner points to define a box window around the area to be enlarged on-screen. Zoom Extents is use to zoom the outer most of your drawing lines and sketches.

ZOOM Command Opposite corner. The command zooms the current drawing to the extents of the selected source drawings. You type ZOOMFACTOR at the AutoCAD command line and then changing the value.

Use the Window option of Zoom to see a selected area of your drawing displayed at a larger magnification. Specify the opposite corner of the zoom area. The area inside the specified window is displayed at the highest magnification that will fit in your AutoCAD drawing window.

Ungroup everything in the drawing ie select all and then UNGROUP. Click Home tab Inquiry panel Show Space Boundaries. 2- Pick View Zoom Extents.

The actual magnification is reduced slightly leaving a few extra pixels of space displayed around the true drawing extents. The default of the system variable ZOOMFACTOR is 60. 1- Continue in the same drawing from the previous exercise.

Specify the opposite corner of the zoom area. 4- Pick View Zoom Scale and then enter 2X at the keyboard when prompted for the scale factor. Drafter Jason Dorshorst sends an AutoCAD customization tip that he uses to save files in a neat and tidy manner.

I made a custom button for these tasks and linked my F5 key to it as well done through the Keyboard Shortcuts Shortcut Keys menu. Videos you watch may be added to the TVs watch history and influence TV. Type UCSFOLLOW on the command line in AutoCAD and set the variable to 0 zero.

Some content has been placed a great distance from the rest of the drawing. This speed of the zoom in and out is controlled by a system variable named ZOOMFACTOR. If you have a small circle on the screen and you perform a Zoom Extents AutoCAD will zoom in on the circle.

My preference is 40 so that I am not zooming in too fast of increments. Zoom to extents and then delete miscellaneous arcs throughout the drawing. To pan with the view box drag it to the location you want and press Enter.

If you want to. To change the size of the view box click resize it and click again to accept the new size of the view box. Enter a value followed by x to.

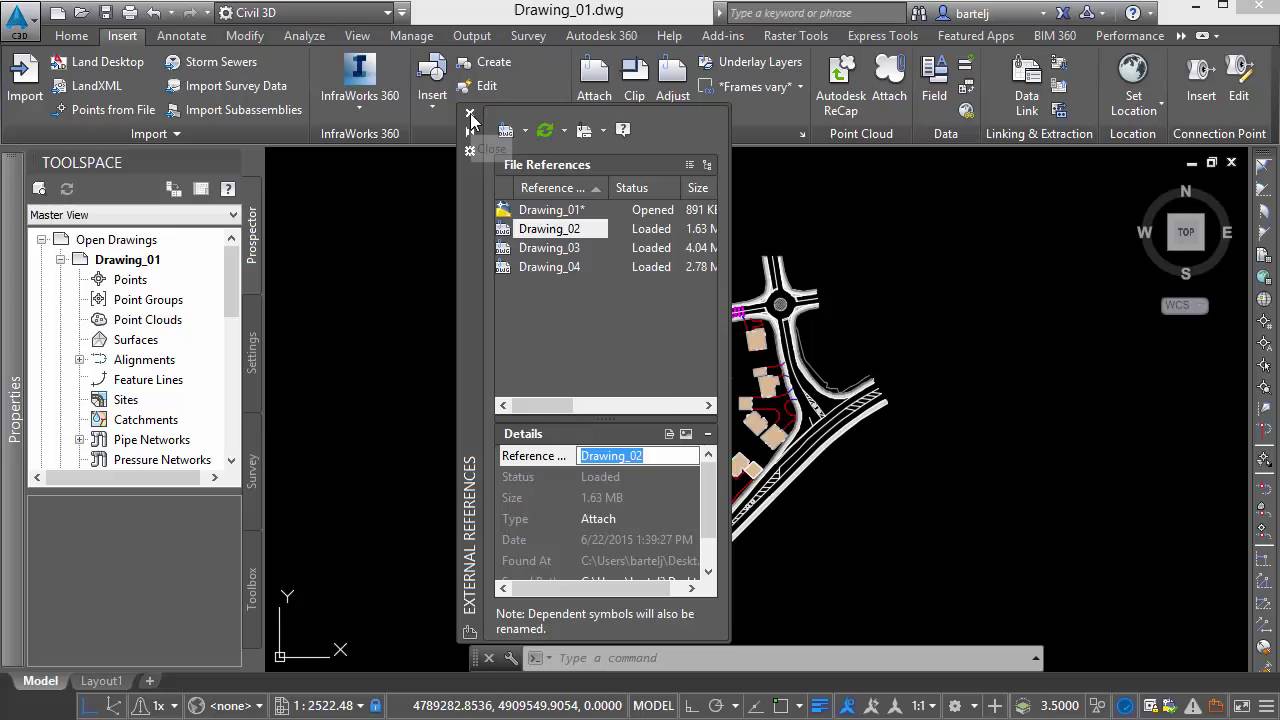

If playback doesnt begin shortly try restarting your device. In the Zoom Drawing Extents dialog box select the drawings to view. Practice with ZOOM Extents.

When opening a drawing in AutoCAD or switching to model space or switching between model views the view automatically zooms to extents. AutoCAD wont care what your limits are set to in calculating the display of a Zoom Extents. Select one of the following options.

Zoom in the drawing area until all desired spaces are visible. Zoom Windows is use to zoom particular window box. When I am done with a drawing I almost always like to zoom extents save and close it.

You can zoom extents by double click of your wheel mouse. Hit the Delete key to. Zoom All on the other hand will zoom out to the extents of the objects or to the limits-whichever is larger.

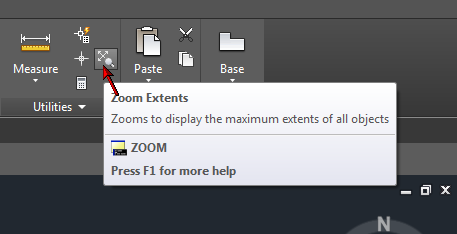

Zooms to display all visible objects and visual aids. To zoom to the extents of selected drawings. Use this zoom by define window box and AutoCAD will zoom in to the max of that box.

Perform one or more of the following. When zooming to extents in AutoCAD the content of a drawing disappears reduces to small dots or shows unexpected empty space in and around the drawing. The UCSFOLLOW system variable is set to 1 which generates a plan view when changing the UCS in the current viewport.

See boundary objects and associative spaces. Adjusts the magnification of the drawing area to accommodate the extents of all visible objects in the drawing or visual aids such as the grid limits the LIMITS command whichever is larger. In Map Explorer right-click Drawings.

Adjust the current drawing extents to view all objects after you execute a query.
